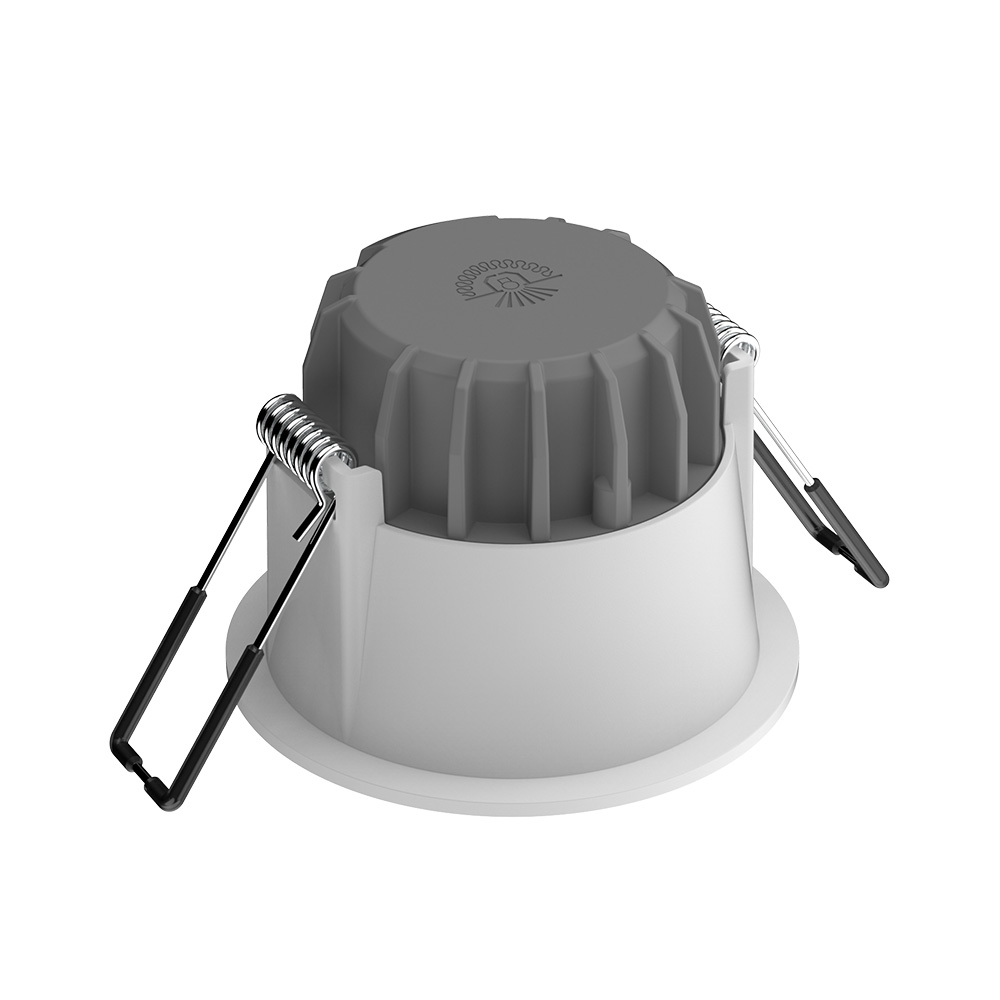

Kaleido is a new exciting downlights with RGB stunning reflector which can be simply remoted controlled by the smart wall switches and the remote controller.
With the standard requirement of building regulation, Kaleido is a fire rated downlights certified 30mins, 60mins and 90mins in solid joist, i-joist and open metal web joist ceiling structure. Also comply with all other building regulations include the Part B, C and E.
Adopting premium COB for a high brightness and lower energy consumption. There are decades pieces of LED chips inside for a better and smooth light.
Considering the trend of healthy, green and eco-friendly lighting, Kaleido imparts soft light output that reduces glare values and creates a comfortable atmosphere.
To suit different decorative environments, Kaleido can be easily changed the magnetic bezels in different finishes such as white, chrome, satin chrome, brass and black. Kaleido can be paired with a smart switch that is equipped with Bluetooth technology to connect all the accessories in the circuit, no need to operate via mobile phone, what means unaffected by phone APP upgrade.
The smart switch contains 5 buttons in bottom position, “CCT” control the light source in the center, the light colour temperature is 2000K-6500K tun-able, also can be dim up and down from 5-100%. “RGB” control the side light source, bring different atmosphere to your room. CCT & RGB can be light on together, also can be controlled separately. Main Light & Side Light, mutual non-interference in each other. The wall switch also has memory function, press ON/OFF, enter the last used mode. The memory function will avoid the trouble of repeat setting.
M1, M2, M3 means scene setting, your most ideally & favorite atmosphere can be set to common mode and stored in M1/M2/M3. Walk into your room, jump straight to your favorite mode. Yes, That’s it! Furthermore, the smart switch equipped with a humanization function of turning off after 60 seconds automatically. The smart switches are available in Live/ Neutral cable version, and also the one live cable version to meet the market special requirements.
In addition, Kaleido also have optional infrared remote controller for smart switch. The magnetic suction function of the remote control is convenient for the quick linked-up between the remote controller and the panel. So ass to meet the needs of controlling the lamps in the connection line of the corresponding linked-up panel through the remote control. 5 meters remote control distance makes the control of Kaleido more free, flexible and convenient.
Kaleido is designed without the IC cage accessories which means it can be insulation cover-able directly. With aims to improve the wiring efficiency, Kaleido also equipped with loop-in & loop-out driver with tool less terminals.
| Kaleido Smart Downlights | 3CCT Downlight | PF | >0.9 |
| Part No. | 5RS254 | IP | IP44 Front |
| Power | 7W | Cut Out | © 78-56mm |
| CCT | 2700K 3000K 4000K | Driver | Integrated |
| Lumen | 520-530lm | Dimmable | Trailing & Leading Edge |
| Input | AC 220-240V~50Hz | Size | Drawing Supplied |
| CRI | 80 | LED | COB/SMD |
| Beam Angle | 40° | Switch Cycles | 100,000 |
| Lifespan | 30,000hrs | Insulation Coverable | YES |
| House Material | Aluminum+Plastic | Standard | CE ROHS |
KEY FEATURE 1. Only one live wiring needed 2. Synchronization with remote 3. Control in mode setting 4. Dimmable and CCT changing 5. Ambient color changing 6. Standard switch box |  |
